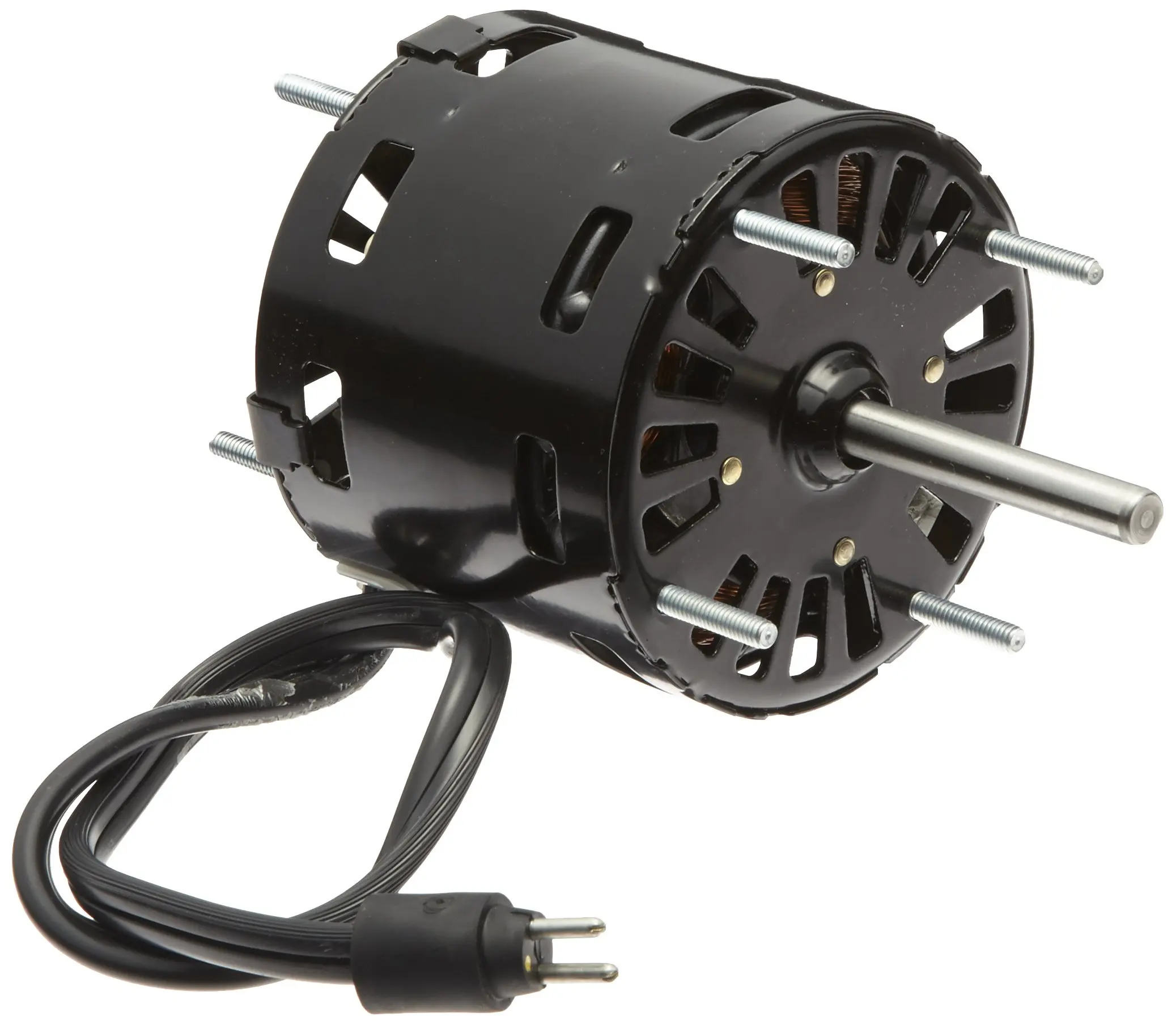

Shaded Pole 1/70 HP C-Frame Motor 3000 RPM 230 Voltage,Frame Non-Standard
1/70 HP C-Frame Motor, Shaded Pole, 3000 RPM, 230 Voltage,Frame Non-Standard: Industrial & Scientific. 1/70 HP C-Frame Motor, Shaded Pole, 3000 RPM, 230 Voltage,Frame Non-Standard: Industrial & Scientific. This DAYTON C-frame motor is mechanically reversible by just inverting the rotor. Model is ideal for use in small fans and blowers found in bathroom ventilators, range hoods, electric heaters, hair dryers, slide projectors, air cleaners, humidifiers, and refrigeration equipment. Mounting: two #8-3 studs at shaft end, and mounting holes on each side of the stator, 1-7/8"" OC.Note: This product is NOT SUITABLE for any unattended equipment (including built-in bathroom exhaust fans), unless the listed Thermal Protection is 1 Shot.Specifications:Item: C-Frame Motor。Motor Application: HVAC/R。Motor Sub Application: Direct Drive Fan/Blower。Motor Design: Shaded Pole。Motor Enclosure Design: Open Air-Over。HP: 1/70。No. of Speeds: 1。Nameplate RPM: 3000。Frame: Non-Standard。Voltage: 0。Hz: 0。Phase: 1。Full Load Amps: 0.48。Motor Mounting Type: Stud。Motor Thermal Protection: Auto。Ins. Class: B。Motor Service Factor: 1.00。Motor Bearings: Sleeve。Ambient Temperature: 40 Degrees C。Max. Ambient Temp.: 40 Degrees C。Motor Shaft Rotation: CWSE。Length Less Shaft: "。Shaft Dia.: 3/1"。Shaft Length: 1"。Stack Size: 7/8"。Stud Quantity: 。Stud Size: #8-3。Mounting Stud Location: Shaft End。Mounting Holes: Opposite Shaft End。O.C. Mounting: 1-7/8"。RPM Range: 1801-3000。Cord Length: 1"。Standards: UL Recognized (E37403/E40077/E47479), CSA Certified (701887)。Includes: Leads。 。 。 。
